CASTINGS
Materials:
We supply castings from ferrous materials (steel and cast iron - low, medium and high alloyed steels, including stainless), but also from non-ferrous materials (aluminum alloy, magnesium, copper or zinc). The casting is carried out according to specification thermal processing (annealing, normalization, processing ...).
Weight, size and production of the series:
We supply castings of various sizes and frequencies (from small, well-cast series of pieces per unit weight of approximately 0.1 kg / pc, to large, one-piece or medium series, defined by weight to about 500 kg / pc.
Of course there is the production of patterns.
RESULTS
We participate in the working example of these components (repeated production):

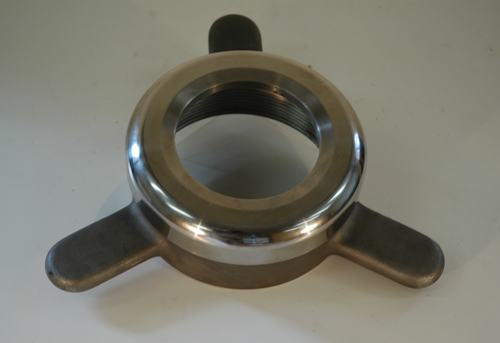

Lock nut
Semifinished material: casting
Material: 1.4340 (stainless steel)
Dimensions: Ø D (incl. handles ) = 368 mm; L = 77 mm
Weight: 9,7 kg
Application: part for food machine

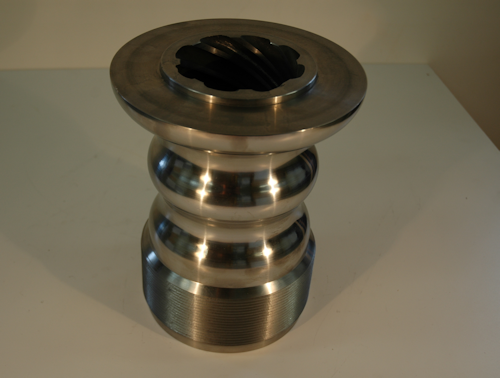

Snail shell
Semifinished material: casting
Material: 1.4340 (stainless steel)
Dimensions: Ø D = 220 mm; L = 265 mm
Weight: 31,5 kg
Application: part for food machine

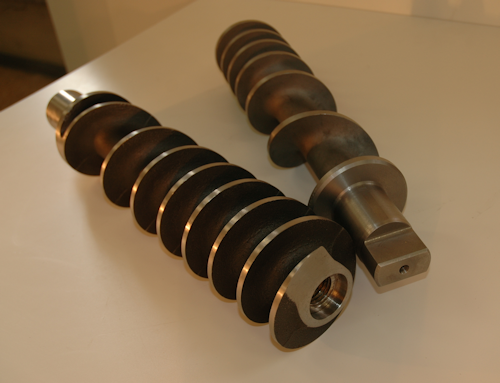

Wolf snail
Semifinished material: casting
Material: 1.4340 (stainless steel)
Dimensions: Ø = 95 mm; L = 483 mm
Weight: 9,6 kg/pcs
Application: part for food machine

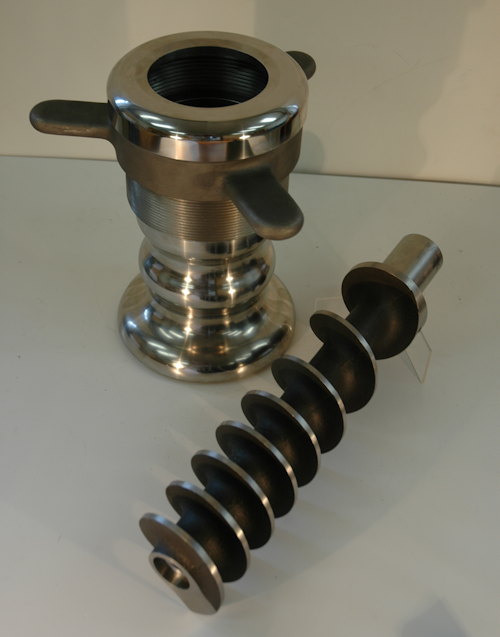

Here you have a complete set of meat grinding equipment for the food machine.

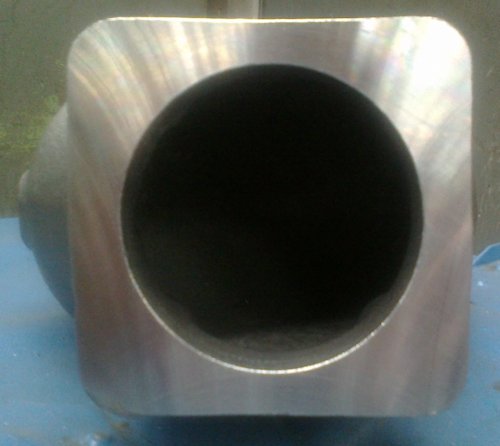

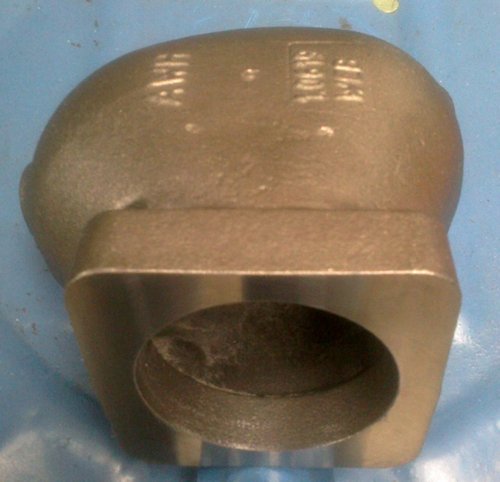

Hood
Semifinished material: casting
Material: 1.4340 (stainless steel)
Dimensions: 190 x 115 x 160 mm
Weight: 6,7 kg/pcs
Application: condensing pressure vessel

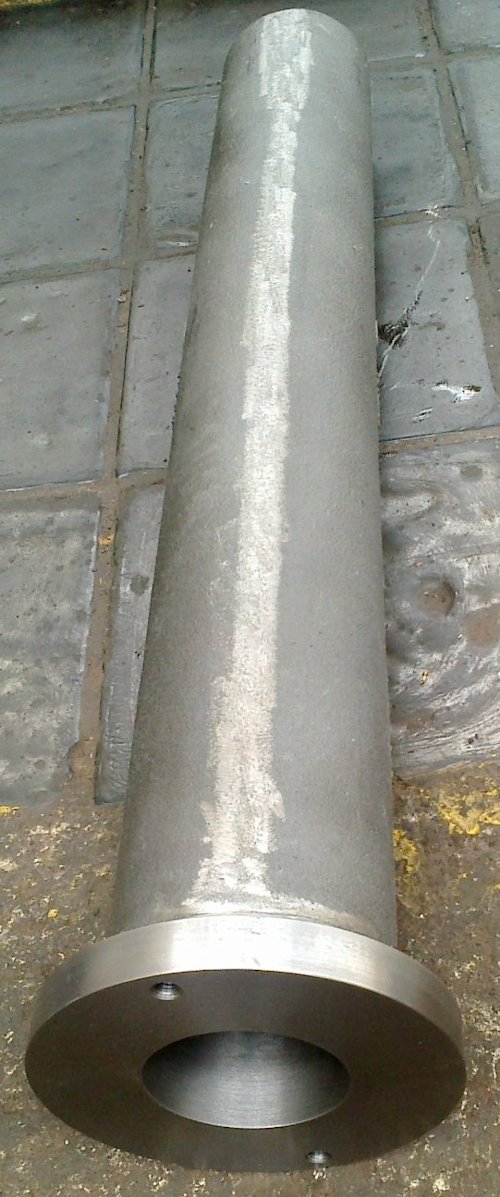

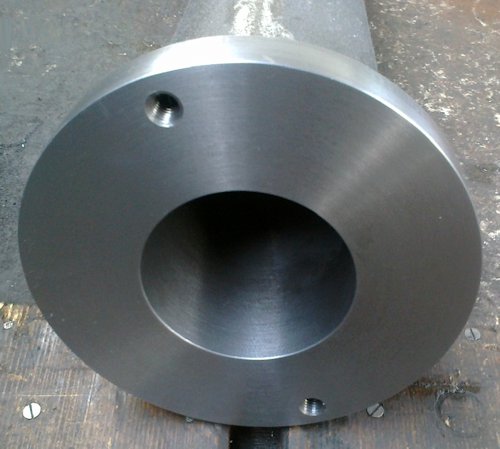

Riser tube
Semifinished material: casting
Material: GGG-40 (ductile iron)
Dimensions: Ø D (cylindrical part) = 120 mm; L = 1.000 mm
Weight: 63 kg/ks
Application: casting (transportation of liquid aluminum die-casting)
Other castings and photos will be continually developed.
